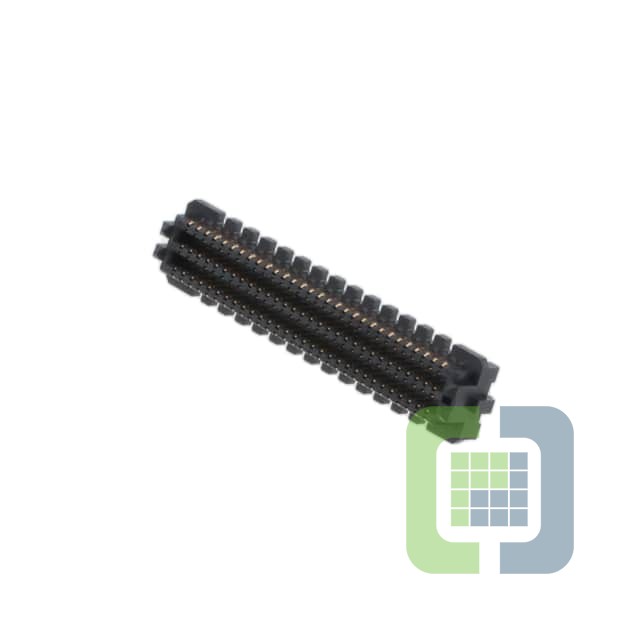

SEAM-30-03.0-S-06-2-A-K-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HD ARRAY PLUG 180P SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet SEAM-30-03.0-S-06-2-A-K-TR Datasheet
-
ECAD Model
- Share
In Stock: 634
Can ship immediately
Pricing:
- 1$18.19
- 200$11.258
- 400$11.0415
- 600$10.825
Quote It
Technical Details
- Series:SEARAY™ SEAM
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:High Density Array, Male
- Number of Positions:180
- Pitch:0.050" (1.27mm)
- Number of Rows:6
- Mounting Type:Surface Mount
- Features:Board Guide, Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:8mm, 9mm, 9.5mm, 10.5mm
- Height Above Board:0.220" (5.59mm)
