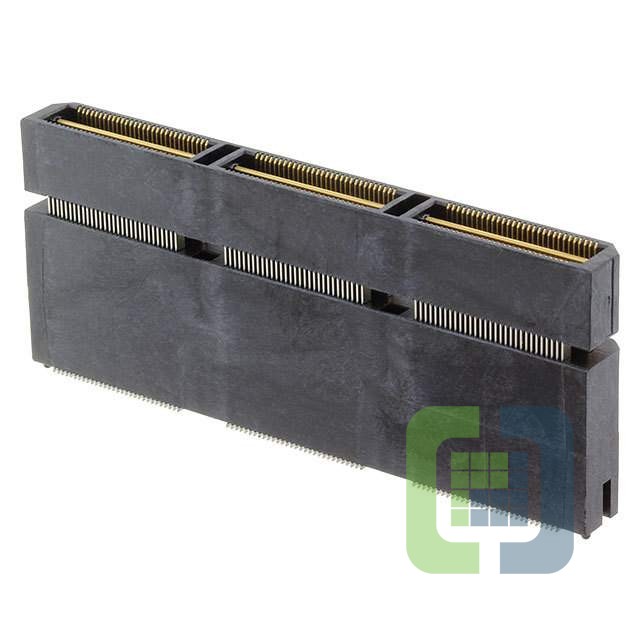

QTH-090-07-F-D-A
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN ARRAY PLUG 180POS SMD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QTH-090-07-F-D-A Datasheet
-
ECAD Model
- Share
In Stock: 423
Can ship immediately
Pricing:
- 1$22.74
- 10$20.52321
- 100$17.81964
- 500$16.34491
Quote It
Technical Details
- Series:Q Strip® QTH
- Package:Tray
- Part Status:Active
- Connector Type:Differential Pair Array, Male
- Number of Positions:180
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:3.00µin (0.076µm)
- Mated Stacking Heights:25mm
- Height Above Board:0.954" (24.23mm)
