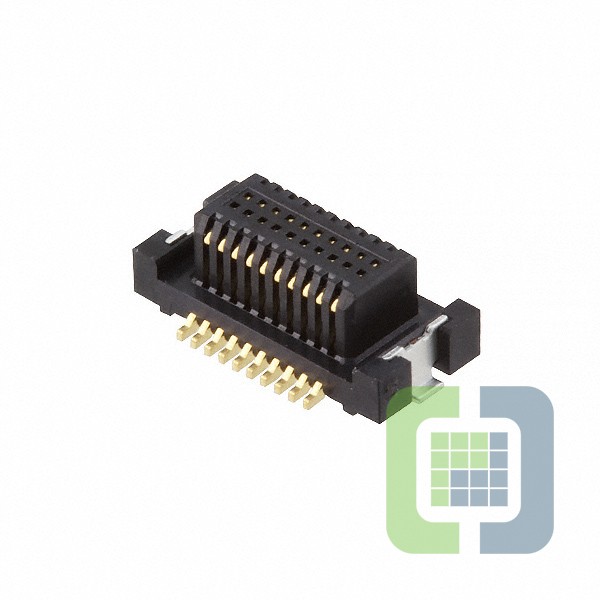

1565357-9
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 20POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 1565357-9 Datasheet
-
ECAD Model
- Share
In Stock: 7,967
Can ship immediately
Pricing:
- 1$1.62
- 1,000$0.88883
- 2,000$0.8592
- 3,000$0.82957
- 5,000$0.78809
- 10,000$0.77032
Quote It
Technical Details
- Series:Fine Mate
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:20
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:-
- Mated Stacking Heights:4mm, 4.5mm, 5.5mm, 6mm
- Height Above Board:0.126" (3.20mm)
