0559090874
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant

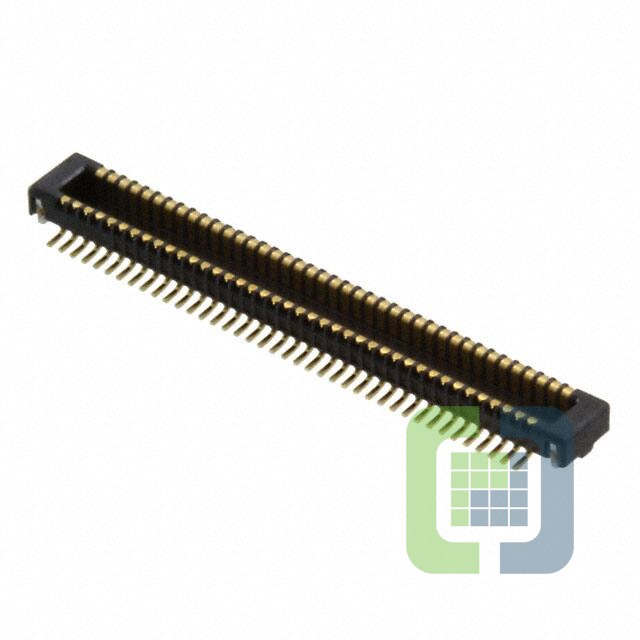

- DescriptionCONN PLUG 80POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 0559090874 Datasheet
-
ECAD Model
- Share
In Stock: 9,278
Can ship immediately
Pricing:
- 1$6.18
- 625$6.18
- 1,250$5.4075
- 1,875$5.29162
Quote It
Technical Details
- Series:SlimStack 55909
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Plug, Outer Shroud Contacts
- Number of Positions:80
- Pitch:0.016" (0.40mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:8.00µin (0.203µm)
- Mated Stacking Heights:1.5mm
- Height Above Board:0.045" (1.14mm)
