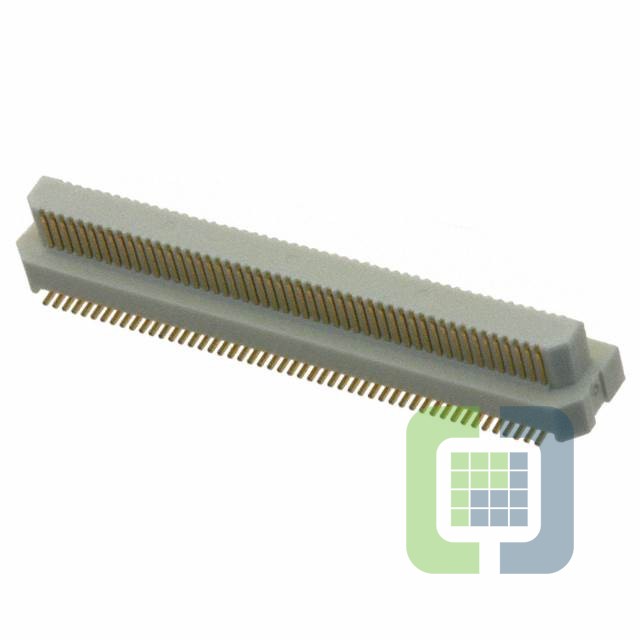

AXK6S00547YA
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 100POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet AXK6S00547YA Datasheet
-
ECAD Model
- Share
In Stock: 578
Can ship immediately
Pricing:
- 1$4.15
- 10$3.984
- 25$3.652
- 50$3.486
- 100$3.32
- 250$2.905
- 500$2.822
- 1,000$2.407
- 2,500$2.241
Quote It
Technical Details
- Series:P5KS
- Package:Strip
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:100
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:-
- Contact Finish:Gold
- Contact Finish Thickness:-
- Mated Stacking Heights:5mm, 5.5mm, 8mm
- Height Above Board:0.169" (4.30mm)
