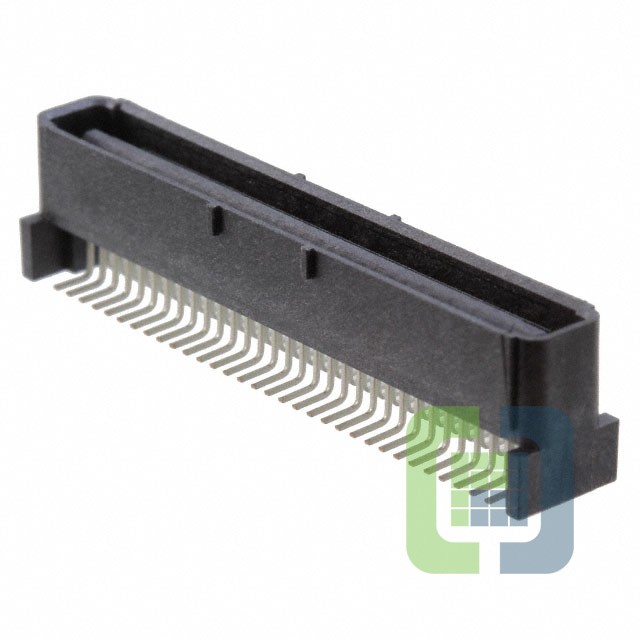

5120534-1
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 64POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 5120534-1 Datasheet
-
ECAD Model
- Share
In Stock: 727
Can ship immediately
Pricing:
- 1$8.07
- 400$6.3216
- 800$5.65618
- 1,200$5.32346
- 2,000$5.22364
Quote It
Technical Details
- Series:Free Height (FH) IEEE 1386, PMC
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Plug, Center Strip Contacts
- Number of Positions:64
- Pitch:0.039" (1.00mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:-
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:10mm, 12mm, 13mm, 15mm
- Height Above Board:0.329" (8.35mm)
