2-5177986-8
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant

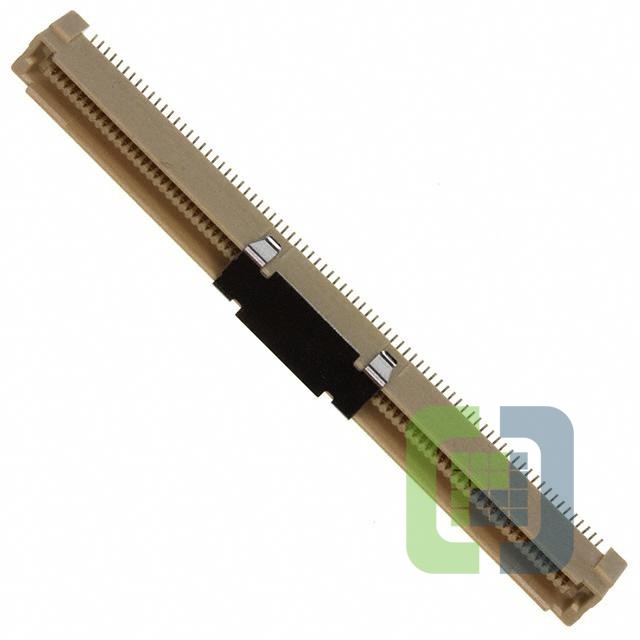

- DescriptionCONN PLUG 160POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 2-5177986-8 Datasheet
-
ECAD Model
- Share
In Stock: 772
Can ship immediately
Pricing:
- 1$12.4
- 450$8.65051
- 900$7.64594
Quote It
Technical Details
- Series:Free Height (FH)
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Plug, Center Strip Contacts
- Number of Positions:160
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:8.00µin (0.203µm)
- Mated Stacking Heights:7mm, 11mm, 15mm, 19mm
- Height Above Board:0.270" (6.85mm)
