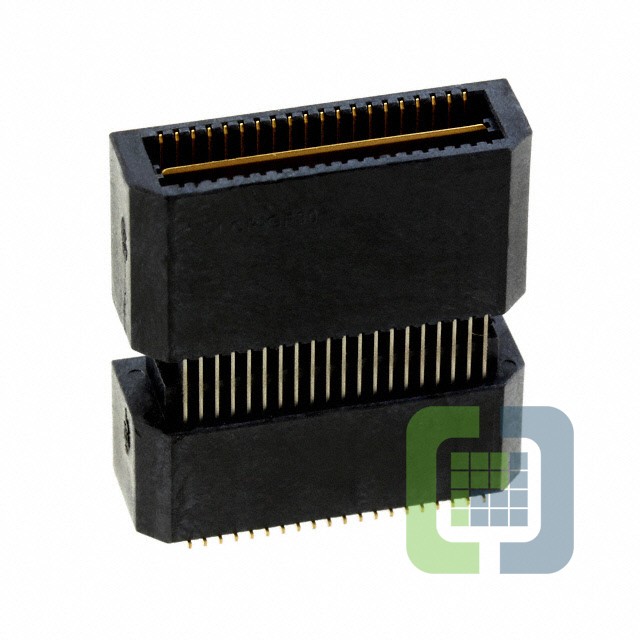

1658018-1
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 40POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 1658018-1 Datasheet
-
ECAD Model
- Share
In Stock: 666
Can ship immediately
Pricing:
- 1$12.59
- 10$11.54387
- 36$11.28193
- 72$10.49472
- 108$9.97015
- 252$9.18296
- 504$8.65824
- 1,008$8.02855
Quote It
Technical Details
- Series:MICTOR
- Package:Tray
- Part Status:Active
- Connector Type:Plug, Outer Shroud Contacts
- Number of Positions:40
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:22mm
- Height Above Board:0.836" (21.23mm)
