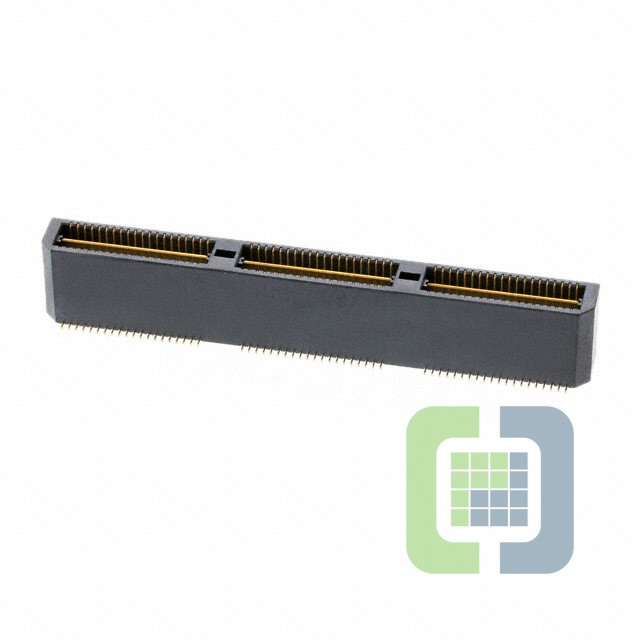

1658015-3
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 120POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 1658015-3 Datasheet
-
ECAD Model
- Share
In Stock: 334
Can ship immediately
Pricing:
- 1$15.16
- 10$13.89794
- 39$13.58203
- 78$12.63456
- 117$12.00283
- 273$11.05523
- 507$10.42348
- 1,014$9.66541
Quote It
Technical Details
- Series:MICTOR
- Package:Tray
- Part Status:Active
- Connector Type:Plug, Outer Shroud Contacts
- Number of Positions:120
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:11mm
- Height Above Board:0.404" (10.27mm)
