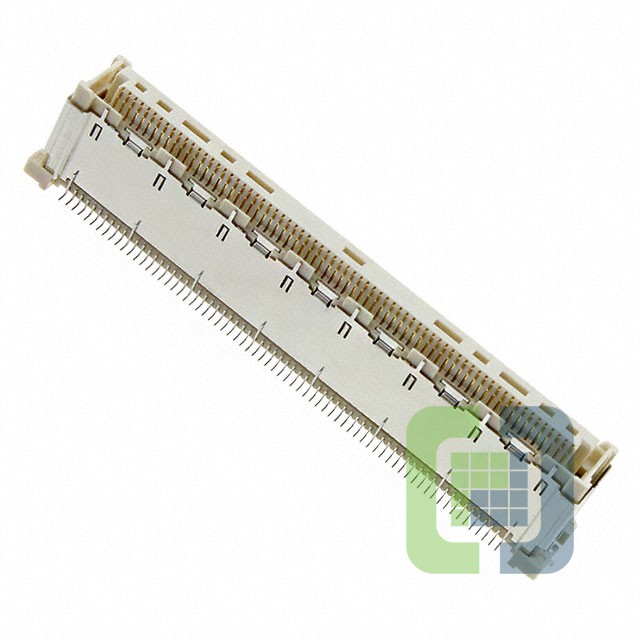

1-5316318-0
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 140POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 1-5316318-0 Datasheet
-
ECAD Model
- Share
In Stock: 457
Can ship immediately
Pricing:
- 1$20.17
- 10$18.20737
- 30$17.44441
- 60$16.35401
- 120$15.8089
- 270$14.93668
- 510$14.50058
Quote It
Technical Details
- Series:Free Height (FH) GIGA
- Package:Tray
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:140
- Pitch:0.024" (0.60mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:8.00µin (0.203µm)
- Mated Stacking Heights:-
- Height Above Board:0.443" (11.25mm)
