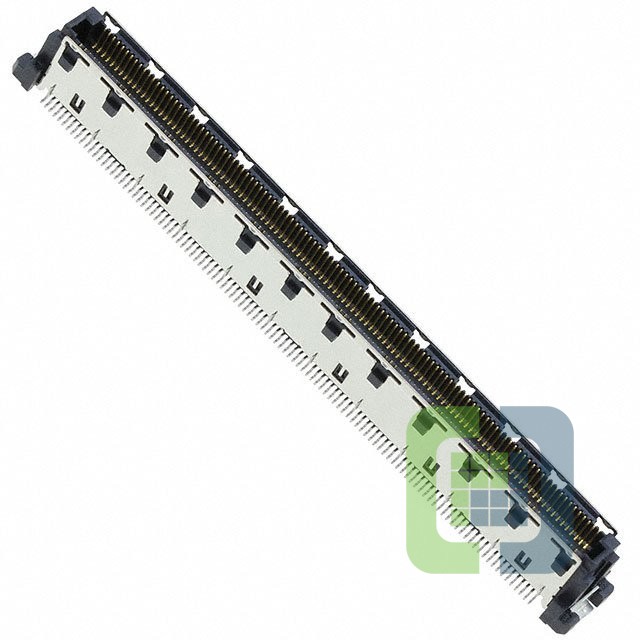

3-1939756-6
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 220POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 3-1939756-6 Datasheet
-
ECAD Model
- Share
In Stock: 488
Can ship immediately
Pricing:
- 1$41.78
- 10$37.71492
- 30$36.13371
- 60$33.87533
- 120$32.74614
- 270$30.93944
Quote It
Technical Details
- Series:Free Height (FH)
- Package:Tray
- Part Status:Active
- Connector Type:Plug, Outer Shroud Contacts
- Number of Positions:220
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:8mm
- Height Above Board:0.293" (7.45mm)
