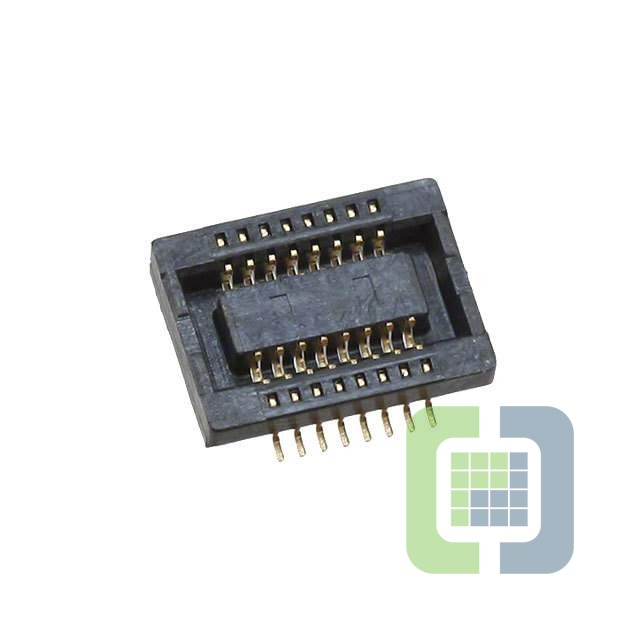

0547220164
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 16POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 0547220164 Datasheet
-
ECAD Model
- Share
In Stock: 34,177
Can ship immediately
Pricing:
- 1$1.62
- 3,000$0.83874
- 6,000$0.7968
- 9,000$0.77883
Quote It
Technical Details
- Series:SlimStack 54722
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:16
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:-
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:1.5mm
- Height Above Board:0.045" (1.14mm)
