0543630289
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant

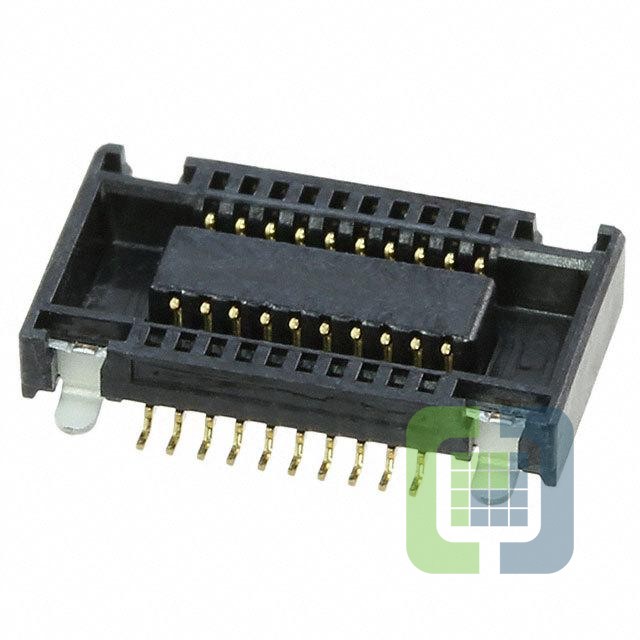

- DescriptionCONN RCPT 20POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 0543630289 Datasheet
-
ECAD Model
- Share
In Stock: 24,930
Can ship immediately
Pricing:
- 1$2.19
- 2,500$1.10524
- 5,000$1.04998
Quote It
Technical Details
- Series:SlimStack 54363
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:20
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:2mm, 3mm
- Height Above Board:0.059" (1.50mm)
