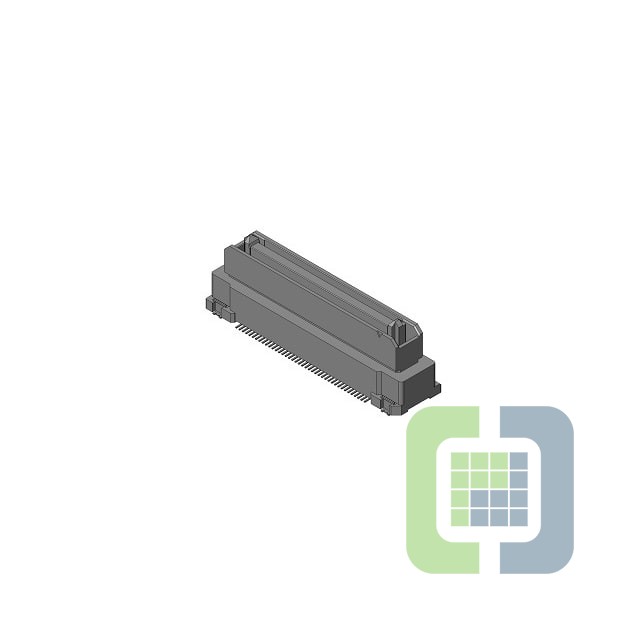

AX01F080VABBR300
JAE Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFLOATING SIDE B2B CONNECTOR, 80
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
-
ECAD Model
- Share
In Stock: 475
Can ship immediately
Pricing:
- 1$6.53
Quote It
Technical Details
- Series:AX01
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:80
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:-
- Height Above Board:0.484" (12.29mm)
