8-6318491-6
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant

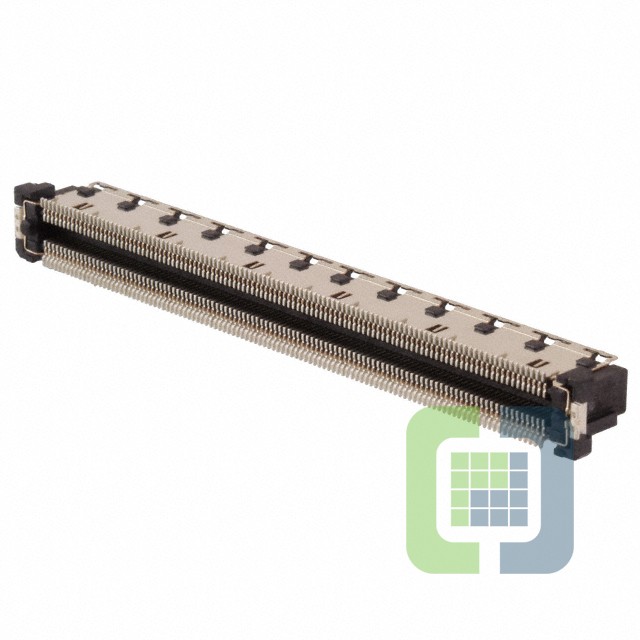

- DescriptionCONN PLUG 220POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 8-6318491-6 Datasheet
-
ECAD Model
- Share
In Stock: 906
Can ship immediately
Pricing:
- 1$25
- 10$22.80389
- 30$21.95074
- 60$20.73125
- 120$20.12143
- 270$19.14587
- 510$18.65808
Quote It
Technical Details
- Series:Free Height (FH)
- Package:Tray
- Part Status:Active
- Connector Type:Plug, Outer Shroud Contacts
- Number of Positions:220
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Plate, Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:8.00µin (0.203µm)
- Mated Stacking Heights:5mm, 8mm
- Height Above Board:0.293" (7.45mm)
