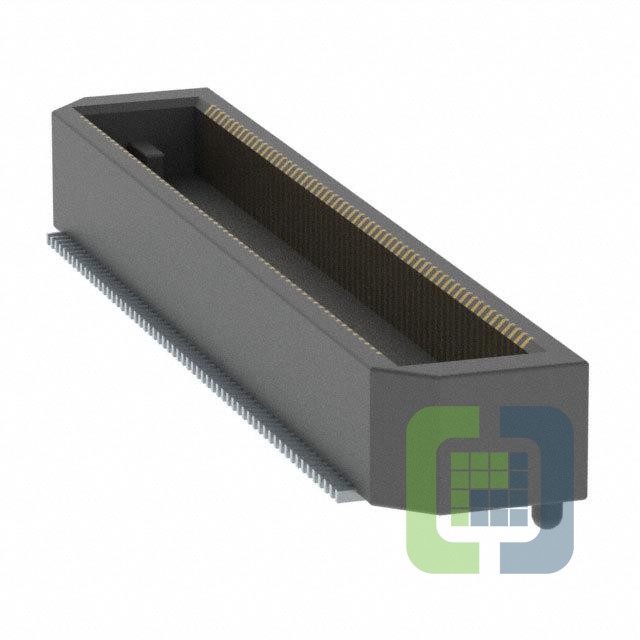

BTH-060-01-F-D-A-K-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 120POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet BTH-060-01-F-D-A-K-TR Datasheet
-
ECAD Model
- Share
In Stock: 280
Can ship immediately
Pricing:
- 1$7.51
- 425$4.53849
- 850$4.069
- 1,275$3.99075
- 2,125$3.9125
Quote It
Technical Details
- Series:BTH
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:120
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:3.00µin (0.076µm)
- Mated Stacking Heights:5mm
- Height Above Board:0.168" (4.27mm)
