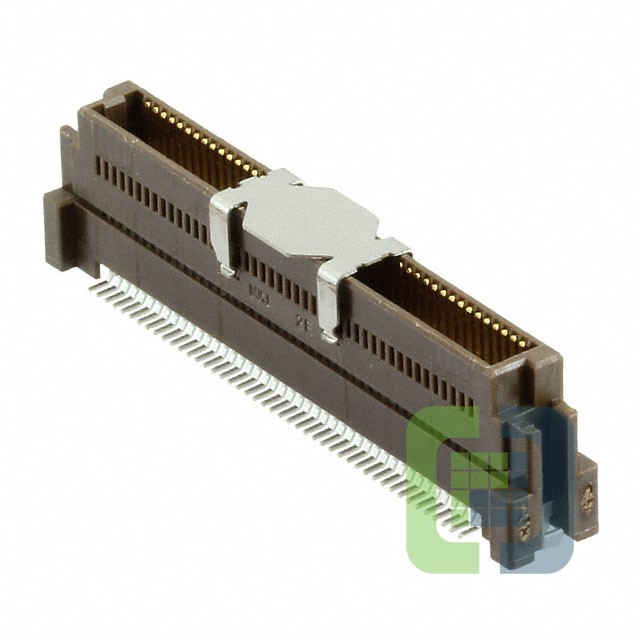

0536270974
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 90POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 0536270974 Datasheet
-
ECAD Model
- Share
In Stock: 1,124
Can ship immediately
Pricing:
- 1$11.02
- 525$7.9895
- 1,050$7.3283
Quote It
Technical Details
- Series:SlimStack 53627
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Plug, Outer Shroud Contacts
- Number of Positions:90
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:10mm, 16mm
- Height Above Board:0.354" (9.00mm)
