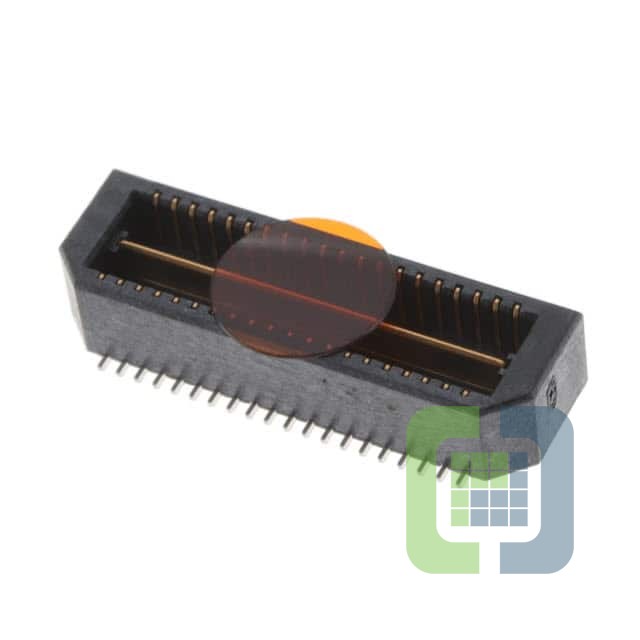

QTE-020-01-L-D-A-K-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 40POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QTE-020-01-L-D-A-K-TR Datasheet
-
ECAD Model
- Share
In Stock: 388
Can ship immediately
Pricing:
- 1$8.04
- 450$4.85751
- 900$4.355
- 1,350$4.27125
- 2,250$4.1875
Quote It
Technical Details
- Series:Q Strip® QTE
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:40
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane), Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:5mm
- Height Above Board:0.168" (4.27mm)
