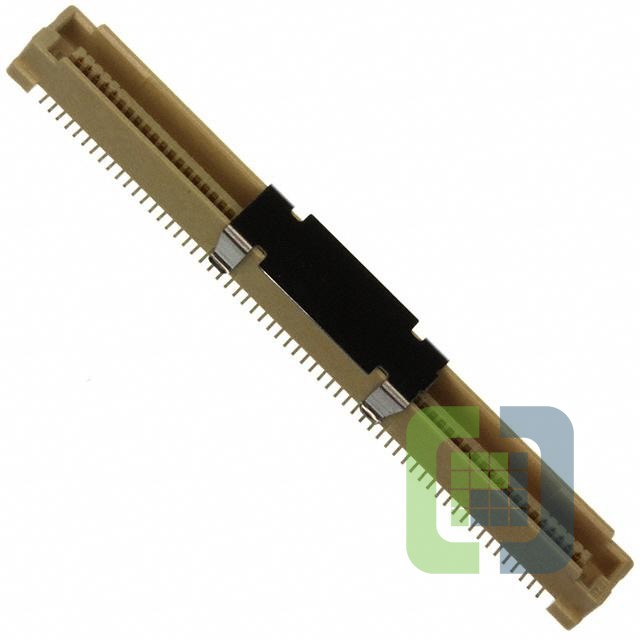

1-5177986-5
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 120POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 1-5177986-5 Datasheet
-
ECAD Model
- Share
In Stock: 504
Can ship immediately
Pricing:
- 1$8.12
- 550$6.03165
- 1,100$5.36147
- 1,650$5.26094
Quote It
Technical Details
- Series:Free Height (FH)
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Plug, Center Strip Contacts
- Number of Positions:120
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:8.00µin (0.203µm)
- Mated Stacking Heights:6mm, 10mm, 14mm, 18mm
- Height Above Board:0.230" (5.85mm)
