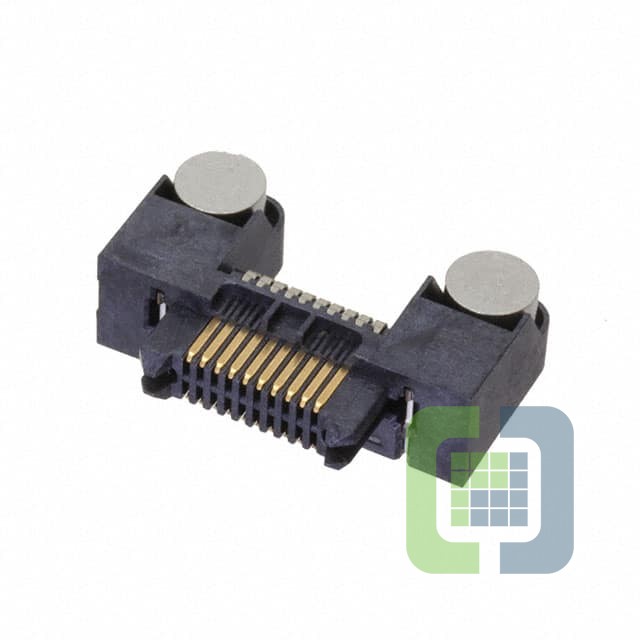

ERM8-010-01-S-D-RA-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 20POS R/A SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet ERM8-010-01-S-D-RA-TR Datasheet
-
ECAD Model
- Share
In Stock: 257
Can ship immediately
Pricing:
- 1$8.28
- 200$5.58
- 400$4.86
- 600$4.68
- 1,000$4.5
- 2,000$4.41
Quote It
Technical Details
- Series:Edge Rate™ ERM8
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Header, Center Strip Contacts
- Number of Positions:20
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount, Right Angle
- Features:Board Guide, Mounting Flange
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:-
- Height Above Board:0.246" (6.25mm)
