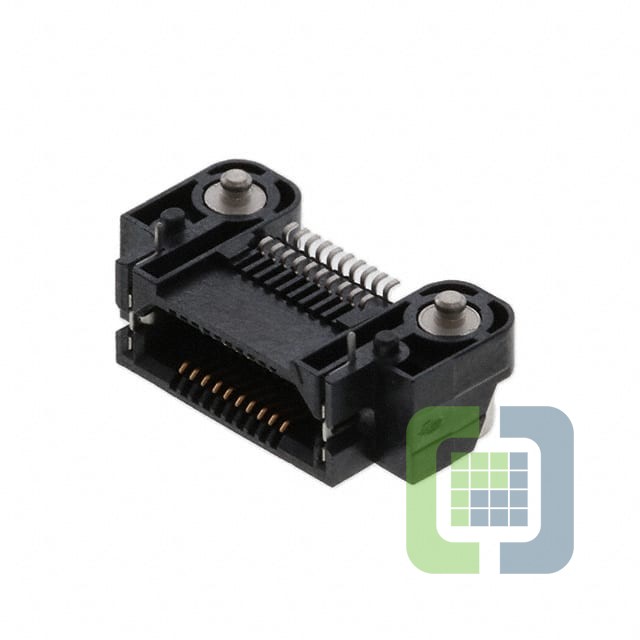

ERF8-010-01-S-D-RA-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN SOCKET 20POS R/A SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet ERF8-010-01-S-D-RA-TR Datasheet
-
ECAD Model
- Share
In Stock: 343
Can ship immediately
Pricing:
- 1$8.6
- 200$5.797
- 400$5.049
- 600$4.862
- 1,000$4.675
- 2,000$4.5815
Quote It
Technical Details
- Series:Edge Rate™ ERF8
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Socket, Outer Shroud Contacts
- Number of Positions:20
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount, Right Angle
- Features:Board Guide, Mounting Flange
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:-
- Height Above Board:0.246" (6.25mm)
