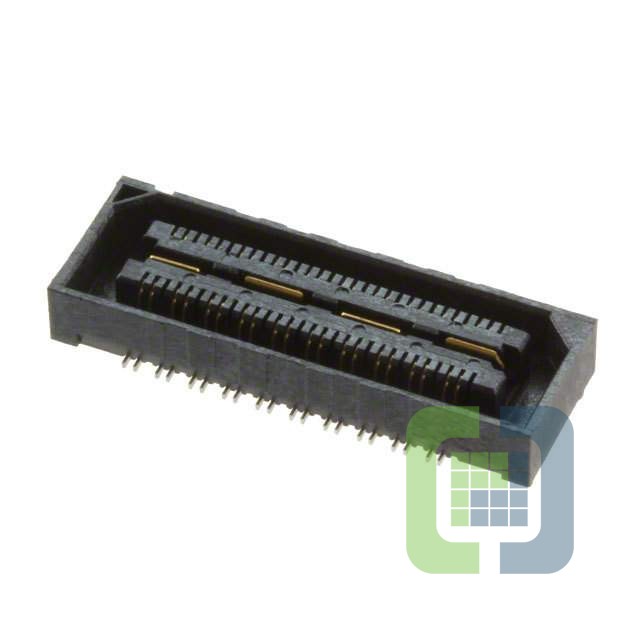

QSH-020-01-F-D-DP-A-K-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN DIFF ARRAY RCP 40P SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QSH-020-01-F-D-DP-A-K-TR Datasheet
-
ECAD Model
- Share
In Stock: 362
Can ship immediately
Pricing:
- 1$8.79
- 125$5.92104
- 250$5.157
- 625$4.966
- 875$4.8705
- 1,250$4.775
Quote It
Technical Details
- Series:Q Strip® QSH
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Differential Pair Array, Female
- Number of Positions:40
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane), Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:3.00µin (0.076µm)
- Mated Stacking Heights:5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm
- Height Above Board:0.128" (3.25mm)
