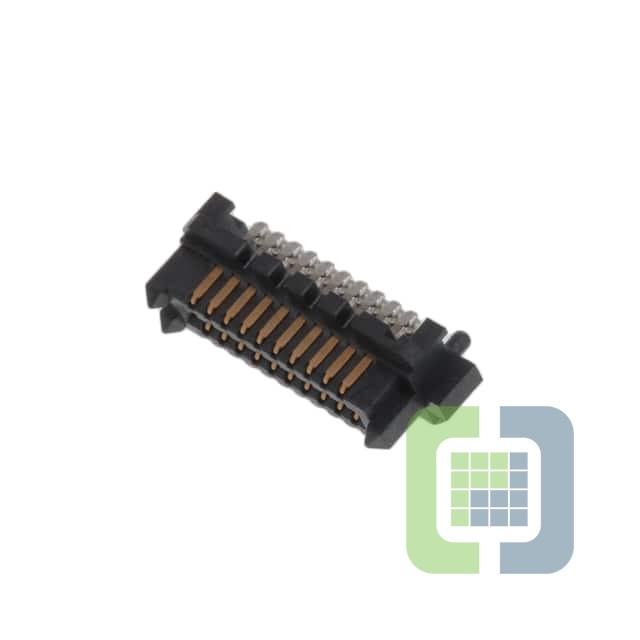

SEAM-10-03.5-L-04-2-A-K-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HD ARRAY PLUG 40P SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
-
ECAD Model
- Share
In Stock: 480
Can ship immediately
Pricing:
- 1$9.25
- 400$5.427
- 800$5.1255
- 1,200$5.025
- 2,000$4.9245
Quote It
Technical Details
- Series:SEARAY™ SEAM
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:High Density Array, Male
- Number of Positions:40
- Pitch:0.050" (1.27mm)
- Number of Rows:4
- Mounting Type:Surface Mount
- Features:Board Guide, Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:8.5mm, 9.5mm, 10mm, 11mm
- Height Above Board:0.240" (6.10mm)
