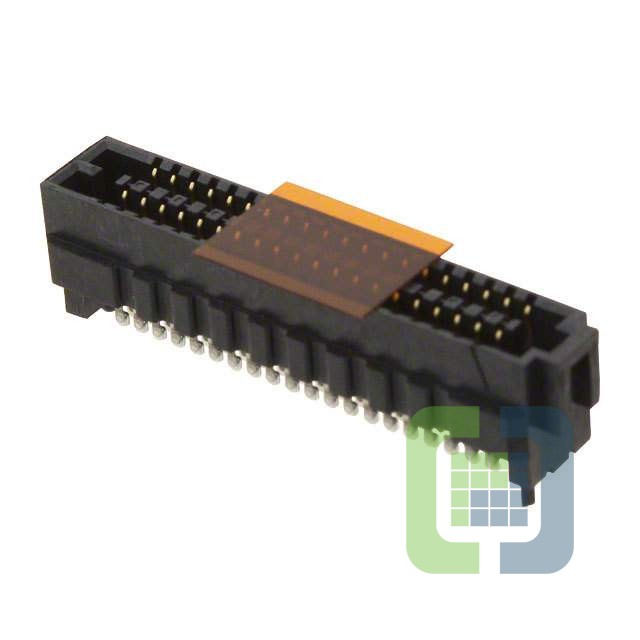

0465572545
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HD ARRAY RCPT 80P SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
-
ECAD Model
- Share
In Stock: 425
Can ship immediately
Pricing:
- 1$13.38
Quote It
Technical Details
- Series:SEARAY 46557
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:High Density Array, Female
- Number of Positions:80
- Pitch:0.050" (1.27mm)
- Number of Rows:4
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:10mm, 10.5mm, 11mm, 11.5mm, 12.5mm, 13mm, 15mm
- Height Above Board:0.317" (8.05mm)
