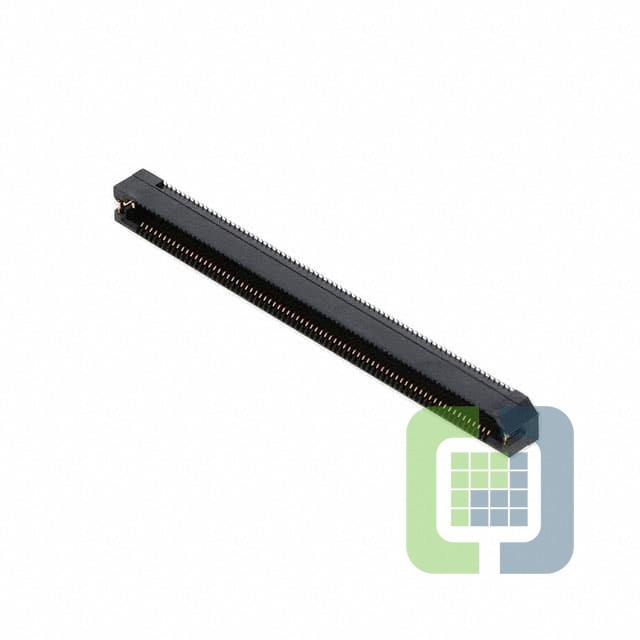

ERF8-075-05.0-L-DV-L-K-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN SOCKET 150POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
-
ECAD Model
- Share
In Stock: 261
Can ship immediately
Pricing:
- 1$10.26
- 375$6.02101
- 750$5.68651
- 1,125$5.575
Quote It
Technical Details
- Series:Edge Rate™ ERF8
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Socket, Outer Shroud Contacts
- Number of Positions:150
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Latches, Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:7mm, 10mm, 13mm, 14mm, 20mm
- Height Above Board:0.210" (5.33mm)
