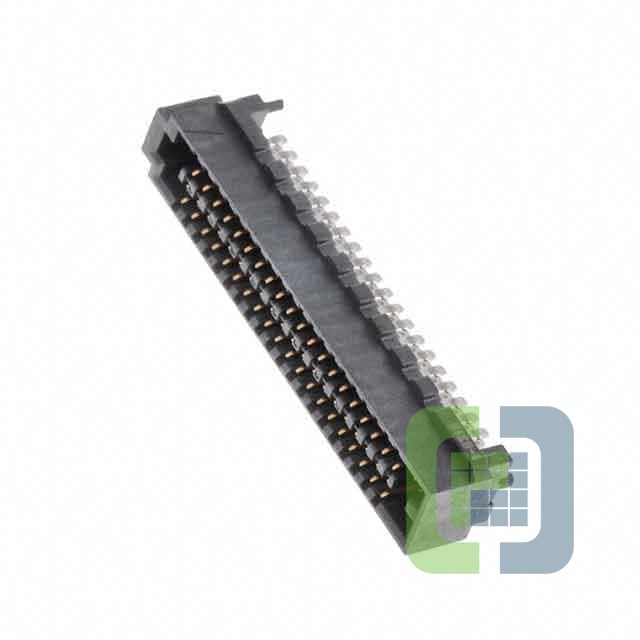

0465572345
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HD ARRAY RCPT 80P SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 0465572345 Datasheet
-
ECAD Model
- Share
In Stock: 409
Can ship immediately
Pricing:
- 1$12.98
- 260$8.6335
- 520$8.0765
- 780$7.6309
- 1,300$7.4081
Quote It
Technical Details
- Series:SEARAY 46557
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:High Density Array, Female
- Number of Positions:80
- Pitch:0.050" (1.27mm)
- Number of Rows:4
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:8.5mm, 9mm, 9.5mm, 10mm, 11mm, 11.5mm, 13.5mm
- Height Above Board:0.258" (6.55mm)
