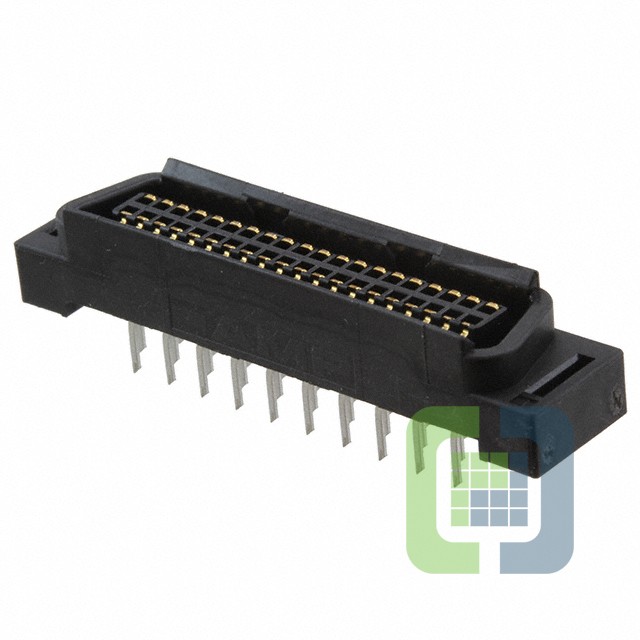

5917631-1
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 40POS VERT GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 5917631-1 Datasheet
-
ECAD Model
- Share
In Stock: 178
Can ship immediately
Pricing:
- 1$14.02
- 10$12.74927
- 25$12.43044
- 50$11.47435
- 100$10.83688
- 250$9.88071
- 500$9.24322
- 1,000$8.47827
Quote It
Technical Details
- Series:Free Height (FH)
- Package:Bulk
- Part Status:Active
- Connector Type:Plug, Center Strip Contacts
- Number of Positions:40
- Pitch:0.050" (1.27mm)
- Number of Rows:2
- Mounting Type:Through Hole
- Features:-
- Contact Finish:Gold
- Contact Finish Thickness:11.8µin (0.30µm)
- Mated Stacking Heights:-
- Height Above Board:0.275" (6.99mm)
