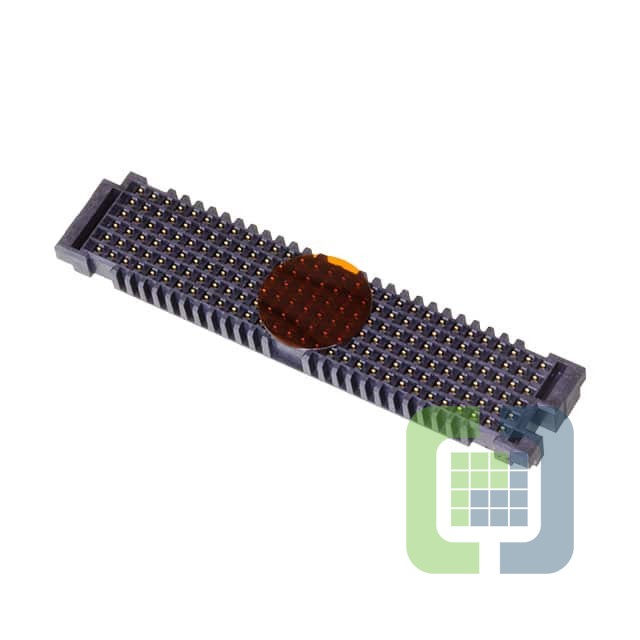

LPAF-30-03.5-L-06-2-K-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN ARRAY RCPT 180POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet LPAF-30-03.5-L-06-2-K-TR Datasheet
-
ECAD Model
- Share
In Stock: 489
Can ship immediately
Pricing:
- 1$16.95
- 500$10.0875
- 1,000$9.684
Quote It
Technical Details
- Series:LP Arrary™
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Array, Female Sockets
- Number of Positions:180
- Pitch:0.050" (1.27mm)
- Number of Rows:6
- Mounting Type:Surface Mount
- Features:Board Guide, Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:4.5mm, 5mm
- Height Above Board:0.130" (3.30mm)
