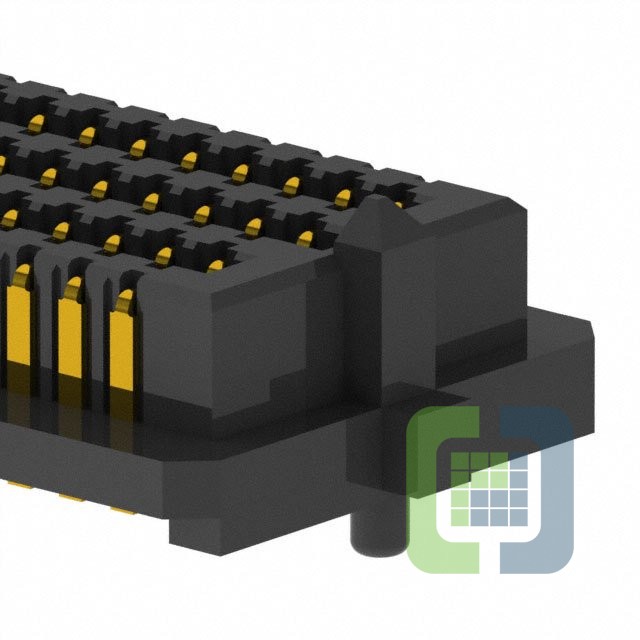

SEAM-20-02.0-S-08-2-A-K-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HD ARRAY PLUG 160P SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet SEAM-20-02.0-S-08-2-A-K-TR Datasheet
-
ECAD Model
- Share
In Stock: 190
Can ship immediately
Pricing:
- 1$18.33
- 225$11.34902
- 450$11.13076
- 675$10.9125
Quote It
Technical Details
- Series:SEARAY™ SEAM
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:High Density Array, Male
- Number of Positions:160
- Pitch:0.050" (1.27mm)
- Number of Rows:8
- Mounting Type:Surface Mount
- Features:Board Guide, Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:7mm, 8mm, 8.5mm, 9.5mm
- Height Above Board:0.181" (4.60mm)
