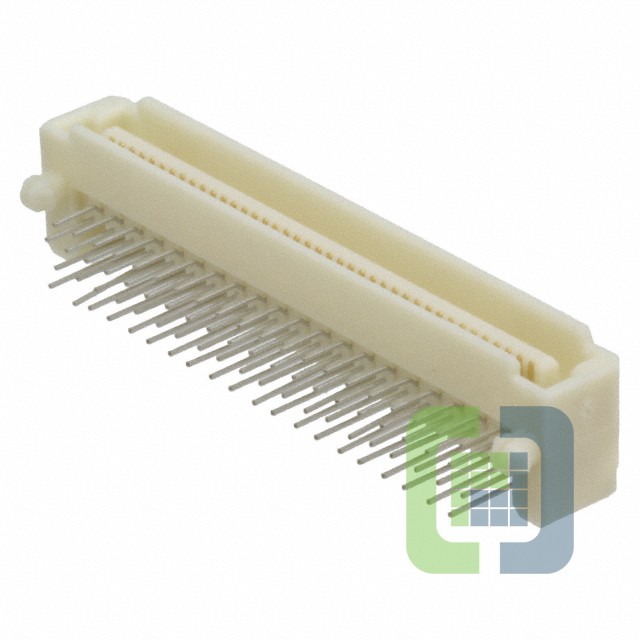

316229-3
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 80POS R/A SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 316229-3 Datasheet
-
ECAD Model
- Share
In Stock: 102
Can ship immediately
Pricing:
- 1$20.85
- 12$18.82395
- 36$18.03526
- 60$16.908
- 108$16.34442
- 252$15.44264
- 504$14.99177
Quote It
Technical Details
- Series:Free Height (FH)
- Package:Tube
- Part Status:Active
- Connector Type:Plug, Center Strip Contacts
- Number of Positions:80
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount, Right Angle
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:11.8µin (0.30µm)
- Mated Stacking Heights:-
- Height Above Board:0.201" (5.10mm)
