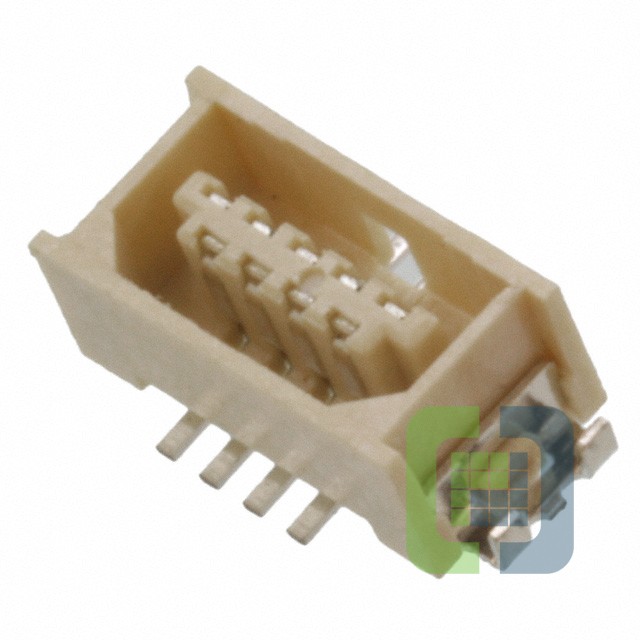

M40-6000946
Harwin
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 9POS SMD TIN
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet M40-6000946 Datasheet
-
ECAD Model
- Share
In Stock: 964
Can ship immediately
Pricing:
- 1$2.35
- 57$1.9119
- 114$1.82508
- 513$1.52087
- 1,026$1.30361
- 5,016$1.15587
Quote It
Technical Details
- Series:M40
- Package:Tube
- Part Status:Active
- Connector Type:Plug, Center Strip Contacts
- Number of Positions:9
- Pitch:0.039" (1.00mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Solder Retention
- Contact Finish:Tin
- Contact Finish Thickness:80.0µin (2.03µm)
- Mated Stacking Heights:4.3mm
- Height Above Board:0.130" (3.30mm)
