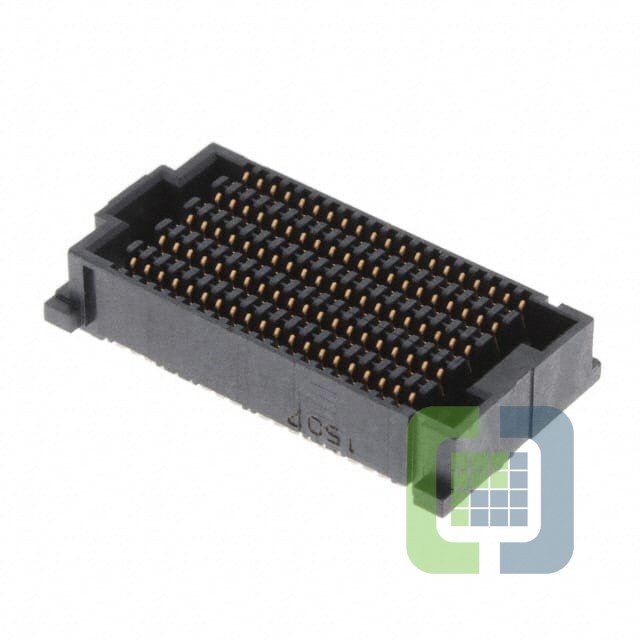

SEAF8-20-05.0-S-10-2-K
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HD ARRAY RCPT 200P SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet SEAF8-20-05.0-S-10-2-K Datasheet
-
ECAD Model
- Share
In Stock: 252
Can ship immediately
Pricing:
- 1$21.95
- 10$21.16412
- 25$20.37988
- 50$19.98763
- 100$19.59578
- 250$19.20387
- 500$18.81195
Quote It
Technical Details
- Series:SEARAY™ SEAF
- Package:Strip
- Part Status:Active
- Connector Type:High Density Array, Female
- Number of Positions:200
- Pitch:0.031" (0.80mm)
- Number of Rows:10
- Mounting Type:Surface Mount
- Features:Board Guide, Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:7mm, 10mm
- Height Above Board:0.180" (4.57mm)
