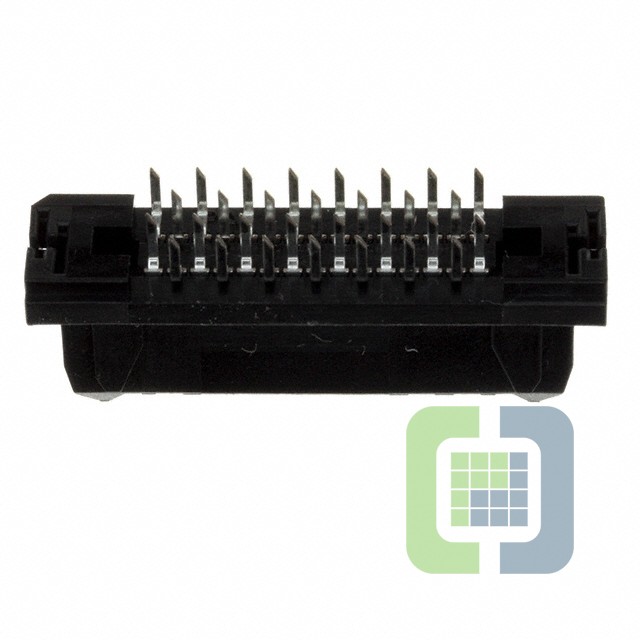

TX24-30R-6ST-N1E
JAE Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 30POS VERT GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet TX24-30R-6ST-N1E Datasheet
-
ECAD Model
- Share
In Stock: 328
Can ship immediately
Pricing:
- 1$1.2
- 10$1.05479
- 25$0.99227
- 50$0.95092
- 100$0.90958
- 250$0.82689
- 500$0.7442
- 1,008$0.66151
- 3,024$0.5995
Quote It
Technical Details
- Series:TX24
- Package:Tray
- Part Status:Active
- Connector Type:Receptacle, Outer Shroud Contacts
- Number of Positions:30
- Pitch:0.050" (1.27mm)
- Number of Rows:2
- Mounting Type:Through Hole
- Features:-
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:12mm, 14mm, 18mm
- Height Above Board:0.406" (10.30mm)
