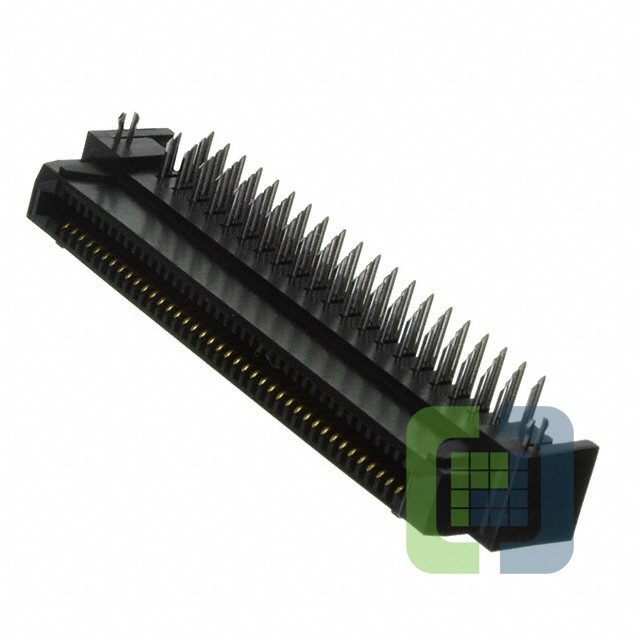

TX24-80R-LT-H1E
JAE Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 80POS R/A GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet TX24-80R-LT-H1E Datasheet
-
ECAD Model
- Share
In Stock: 276
Can ship immediately
Pricing:
- 1$2.54
- 10$2.30624
- 25$2.16477
- 50$2.07045
- 100$1.97634
- 396$1.78811
- 792$1.5999
- 1,188$1.41167
- 2,772$1.31756
Quote It
Technical Details
- Series:TX24
- Package:Tray
- Part Status:Active
- Connector Type:Receptacle, Outer Shroud Contacts
- Number of Positions:80
- Pitch:0.050" (1.27mm)
- Number of Rows:2
- Mounting Type:Through Hole, Right Angle
- Features:Board Lock
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:-
- Height Above Board:0.354" (9.00mm)
