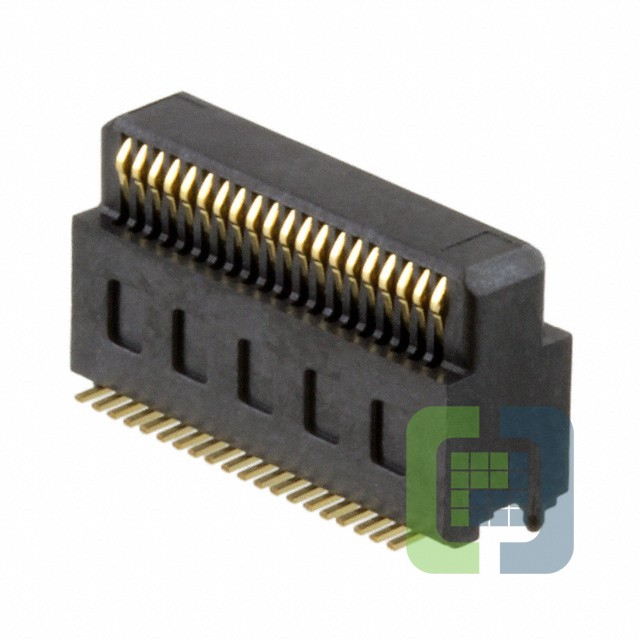

WR-40SB-VFH30-N1
JAE Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 40POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet WR-40SB-VFH30-N1 Datasheet
-
ECAD Model
- Share
In Stock: 227
Can ship immediately
Pricing:
- 1$4.38
- 10$4.2
- 25$3.85
- 50$3.675
- 100$3.5
- 250$3.06252
- 500$2.975
- 1,000$2.5375
- 2,500$2.3625
Quote It
Technical Details
- Series:WR
- Package:Strip
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:40
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:7mm, 8mm, 9mm
- Height Above Board:0.246" (6.25mm)
