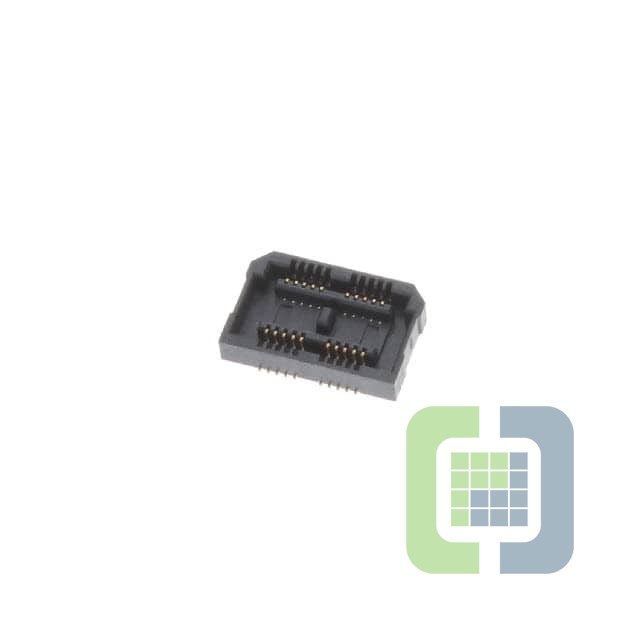

LSH-010-01-G-D-A
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 20POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet LSH-010-01-G-D-A Datasheet
-
ECAD Model
- Share
In Stock: 202
Can ship immediately
Pricing:
- 1$8
- 10$7.29914
- 25$6.95157
- 58$6.25641
- 116$5.56125
- 290$5.03991
- 522$4.69232
- 1,044$4.43163
- 2,552$4.25784
Quote It
Technical Details
- Series:LSH
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:20
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:2.31mm
- Height Above Board:0.075" (1.90mm)
