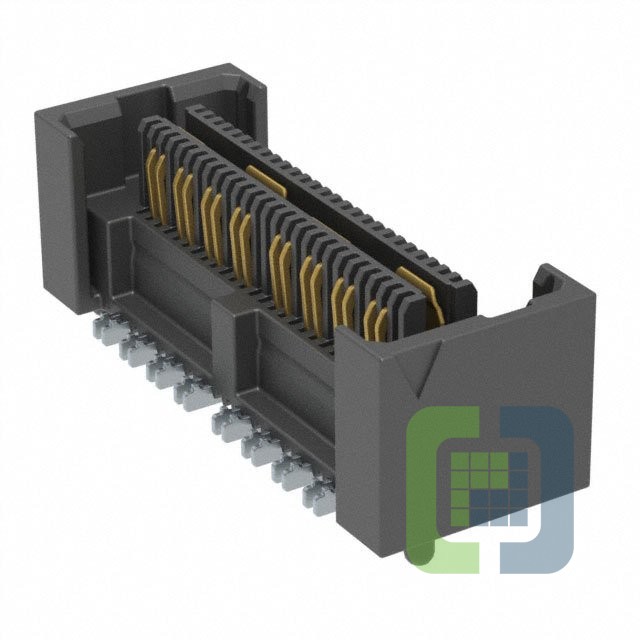

QFS-016-04.25-L-D-DP-A
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN DIFF ARRAY RCP 32P SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QFS-016-04.25-L-D-DP-A Datasheet
-
ECAD Model
- Share
In Stock: 196
Can ship immediately
Pricing:
- 1$8.64
- 10$7.992
- 25$7.56024
- 52$7.1713
- 104$6.69605
- 260$5.832
- 520$5.616
- 1,040$5.4
Quote It
Technical Details
- Series:Power Q2™ QFS
- Package:Tray
- Part Status:Active
- Connector Type:Differential Pair Array, Female
- Number of Positions:32
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:10mm, 11mm, 14mm
- Height Above Board:0.278" (7.06mm)
