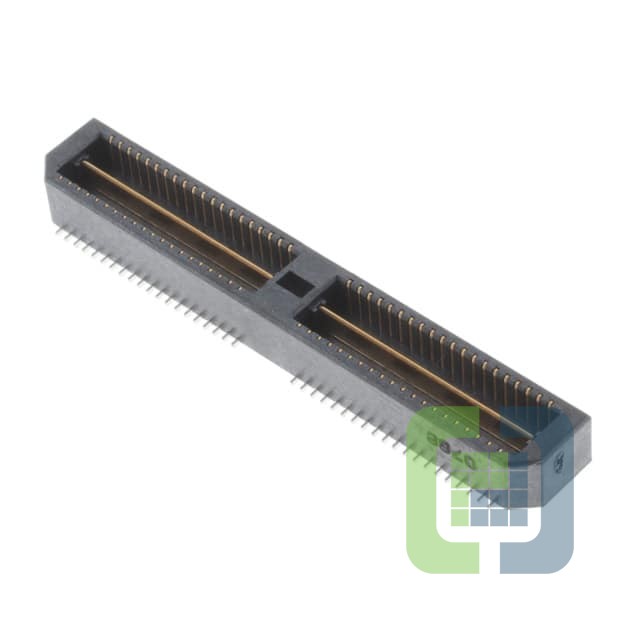

QTE-040-01-L-D-A-K
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 80POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QTE-040-01-L-D-A-K Datasheet
-
ECAD Model
- Share
In Stock: 239
Can ship immediately
Pricing:
- 1$10.76
- 10$9.953
- 25$9.41523
- 50$8.9308
- 100$8.339
- 250$7.263
- 500$6.994
- 1,000$6.725
Quote It
Technical Details
- Series:Q Strip® QTE
- Package:Tray
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:80
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane), Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:5mm
- Height Above Board:0.168" (4.27mm)
