WR-120P-HF-HD-A1E
JAE Electronics
- Lifecycle status Active
- RoHS RoHS Compliant

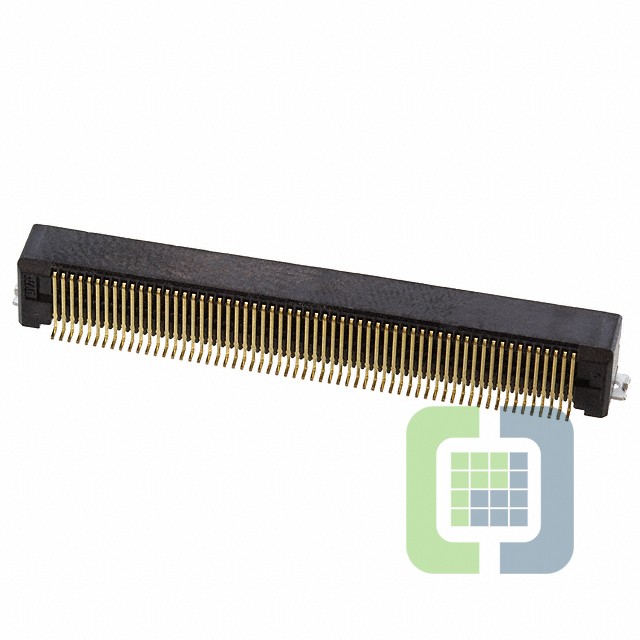

- DescriptionCONN PLUG 120POS R/A SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet WR-120P-HF-HD-A1E Datasheet
-
ECAD Model
- Share
In Stock: 196
Can ship immediately
Pricing:
- 1$18.2
- 10$16.89812
- 25$15.16519
- 50$14.7317
- 100$12.99856
- 250$12.13199
- 500$11.87202
Quote It
Technical Details
- Series:WR
- Package:Tray
- Part Status:Active
- Connector Type:Plug, Outer Shroud Contacts
- Number of Positions:120
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount, Right Angle
- Features:Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:-
- Height Above Board:0.185" (4.70mm)
