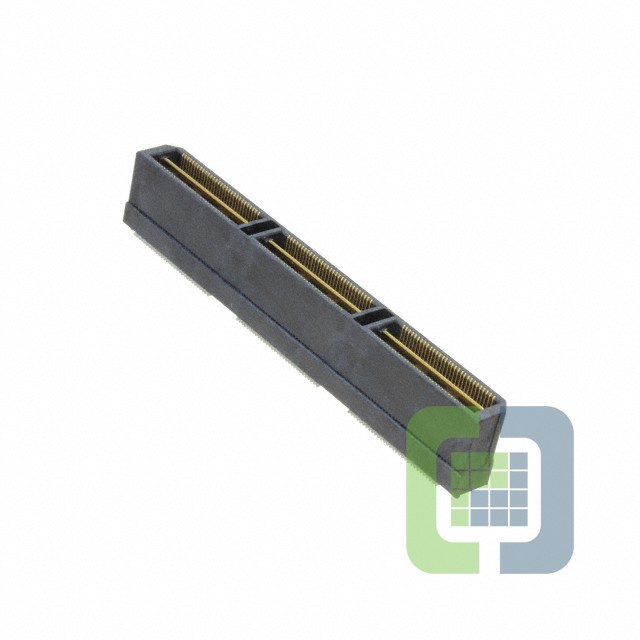

QTH-090-03-L-D-A-K
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN DIFF ARRAY PLUG 180POS SMD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QTH-090-03-L-D-A-K Datasheet
-
ECAD Model
- Share
In Stock: 281
Can ship immediately
Pricing:
- 1$23.66
- 10$21.35938
- 100$18.54592
- 500$17.0111
Quote It
Technical Details
- Series:Q Strip® QTH
- Package:Tray
- Part Status:Active
- Connector Type:Differential Pair Array, Male
- Number of Positions:180
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane), Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:11mm
- Height Above Board:0.404" (10.27mm)
