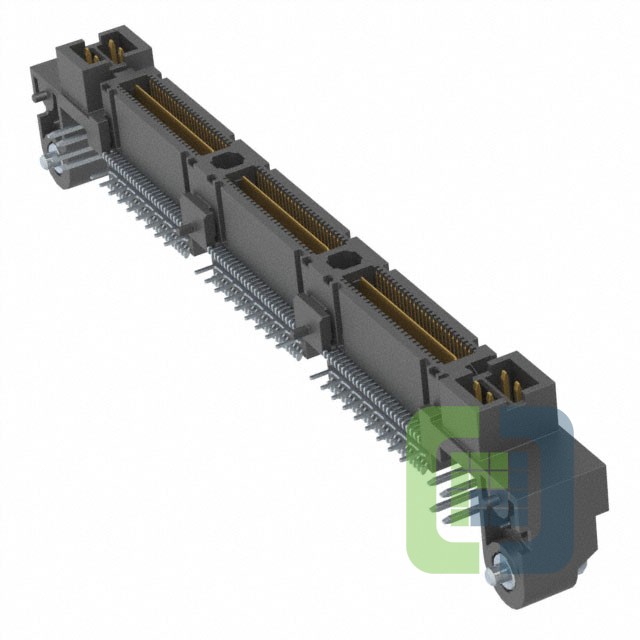

QMS-078-01-SL-D-RA-PC4
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 156POS R/A GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QMS-078-01-SL-D-RA-PC4 Datasheet
-
ECAD Model
- Share
In Stock: 134
Can ship immediately
Pricing:
- 1$33.33
- 10$32.13696
- 25$30.9467
- 50$30.35157
- 100$29.75645
- 250$29.16132
Quote It
Technical Details
- Series:Power Q2™ QMS
- Package:Tray
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:156
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount, Right Angle; Through Hole
- Features:Board Guide, Ground Bus (Plane), Power Pins (8)
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:-
- Height Above Board:0.320" (8.12mm)
