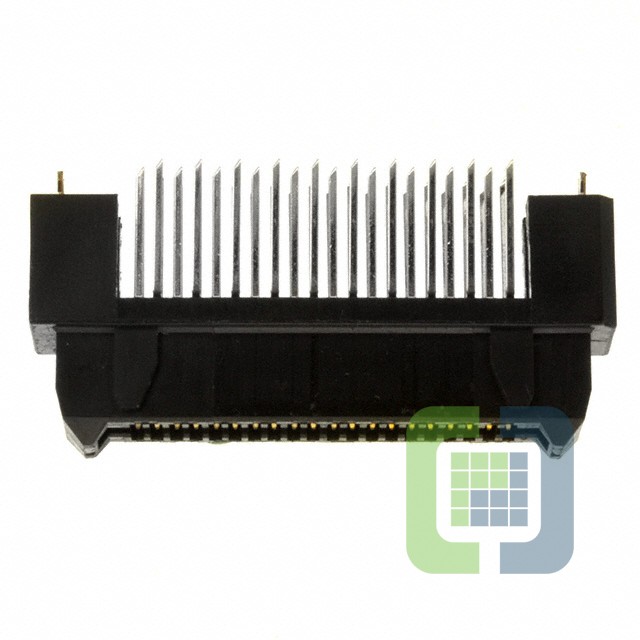

TX24-40R-12ST-H1E
JAE Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 40POS VERT GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet TX24-40R-12ST-H1E Datasheet
-
ECAD Model
- Share
In Stock: 1,083
Can ship immediately
Pricing:
- 1$1.53
- 10$1.39017
- 25$1.30506
- 50$1.24832
- 100$1.19158
- 250$1.07809
- 720$0.99298
- 1,440$0.85113
- 2,880$0.79438
Quote It
Technical Details
- Series:TX24
- Package:Tray
- Part Status:Active
- Connector Type:Receptacle, Outer Shroud Contacts
- Number of Positions:40
- Pitch:0.050" (1.27mm)
- Number of Rows:2
- Mounting Type:Through Hole
- Features:Board Lock
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:18mm, 20mm, 24mm
- Height Above Board:0.642" (16.30mm)
