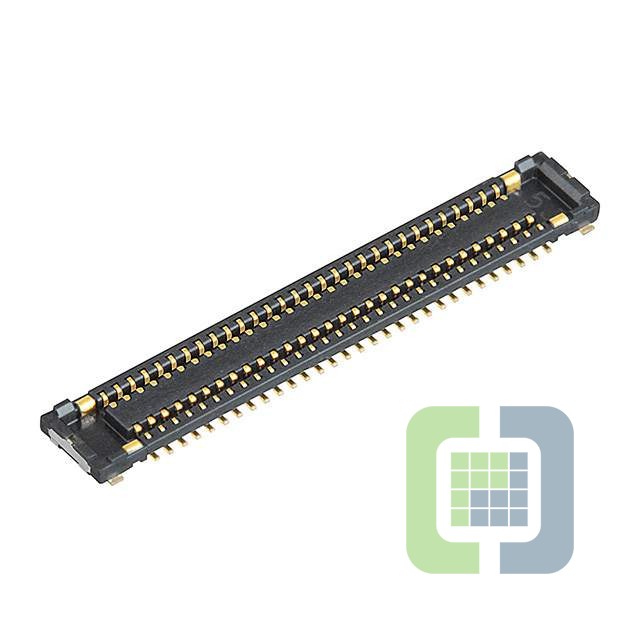

AXF6D7012A
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 70POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet AXF6D7012A Datasheet
-
ECAD Model
- Share
In Stock: 481
Can ship immediately
Pricing:
- 1$2.24
- 10$2.1504
- 25$1.9712
- 50$1.8816
- 100$1.792
- 250$1.568
- 500$1.5232
- 1,000$1.2992
- 2,500$1.2096
Quote It
Technical Details
- Series:A35UH
- Package:Strip
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:70
- Pitch:0.014" (0.35mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:-
- Mated Stacking Heights:0.6mm
- Height Above Board:0.018" (0.46mm)
