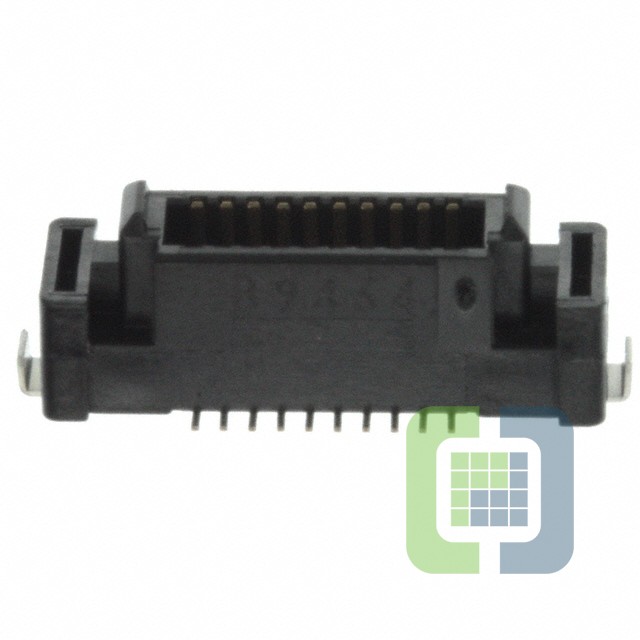

KX15-20K4DE
JAE Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 20POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet KX15-20K4DE Datasheet
-
ECAD Model
- Share
In Stock: 625
Can ship immediately
Pricing:
- 1$2.45
- 10$2.22315
- 25$2.08704
- 50$1.9963
- 100$1.90556
- 250$1.72407
- 500$1.58796
- 1,000$1.36111
- 2,500$1.27037
Quote It
Technical Details
- Series:KX15
- Package:Tray
- Part Status:Active
- Connector Type:Plug, Center Strip Contacts
- Number of Positions:20
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:6mm, 9mm, 12mm, 15mm, 18mm
- Height Above Board:0.226" (5.74mm)
