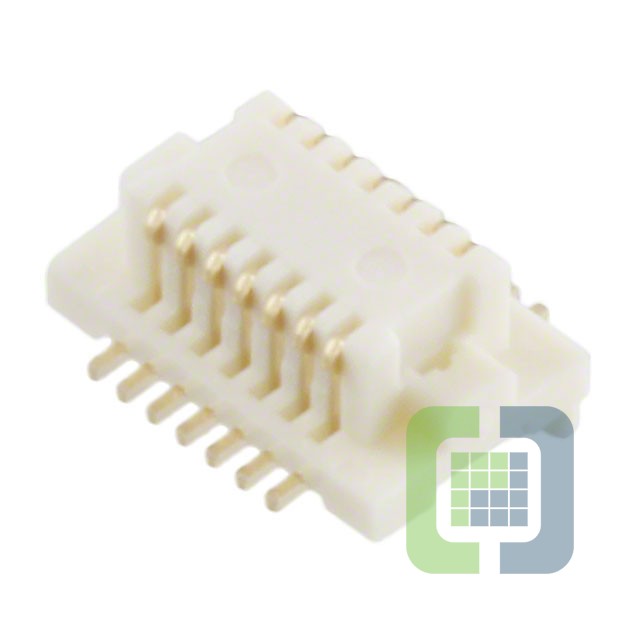

DF12A(3.0)-14DS-0.5V(81)
Hirose
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 14POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet DF12A(3.0)-14DS-0.5V(81) Datasheet
-
ECAD Model
- Share
In Stock: 301
Can ship immediately
Pricing:
- 1$0.74
- 1,000$0.4092
- 2,000$0.3982
- 3,000$0.3762
Quote It
Technical Details
- Series:DF12
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Last Time Buy
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:14
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:8.00µin (0.203µm)
- Mated Stacking Heights:3mm
- Height Above Board:0.087" (2.20mm)
