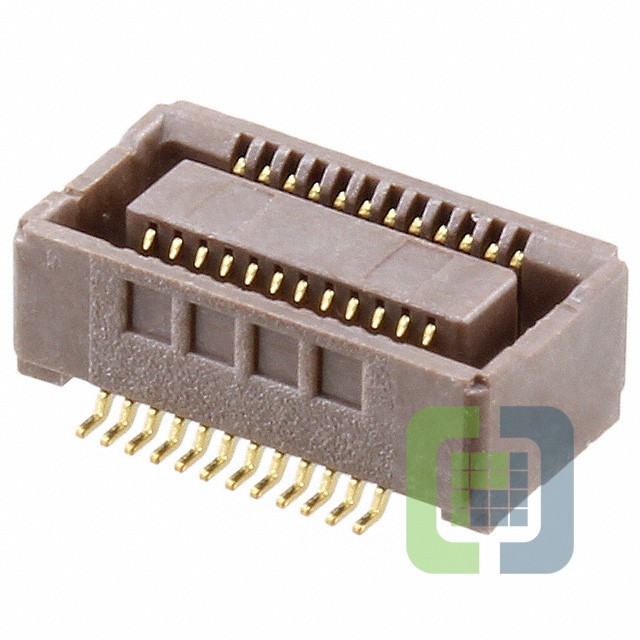

0546840244
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 24POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 0546840244 Datasheet
-
ECAD Model
- Share
In Stock: 753
Can ship immediately
Pricing:
- 1$1.16
- 375$1.078
- 750$0.95551
- 1,125$0.882
- 1,875$0.833
- 2,625$0.8085
- 9,375$0.7497
Quote It
Technical Details
- Series:SlimStack 54684
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:24
- Pitch:0.016" (0.40mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:-
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:3.5mm, 4mm
- Height Above Board:0.102" (2.60mm)
