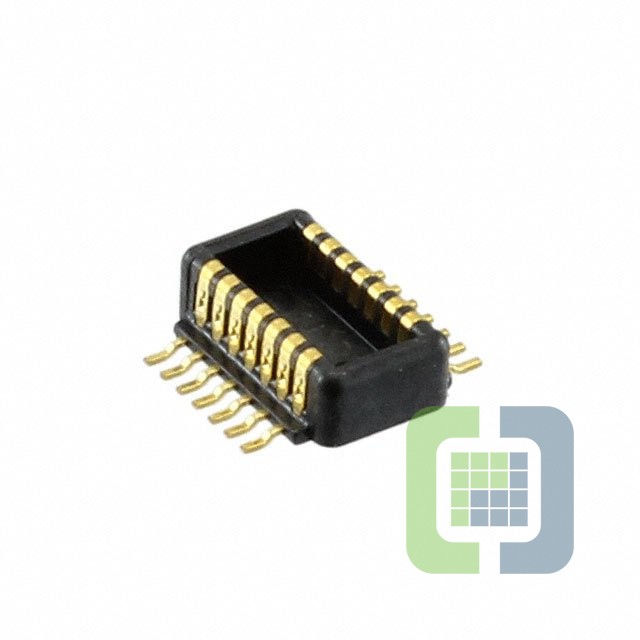

AXK814145WG
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 14POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet AXK814145WG Datasheet
-
ECAD Model
- Share
In Stock: 989
Can ship immediately
Pricing:
- 1$1.39
- 3,000$0.696
- 6,000$0.672
- 9,000$0.6384
- 15,000$0.624
Quote It
Technical Details
- Series:P4
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Not For New Designs
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:14
- Pitch:0.016" (0.40mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:-
- Contact Finish:Gold
- Contact Finish Thickness:-
- Mated Stacking Heights:1.5mm, 2mm, 2.5mm
- Height Above Board:0.052" (1.32mm)
