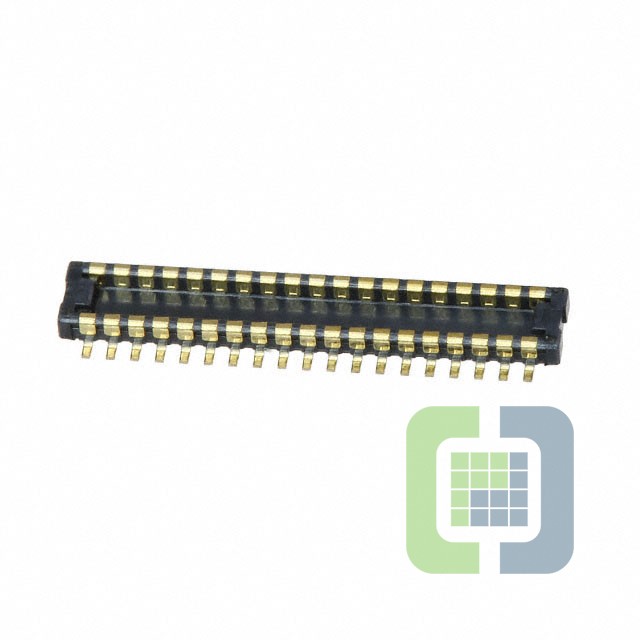

WP7B-P034VA1-R500
JAE Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 34POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet WP7B-P034VA1-R500 Datasheet
-
ECAD Model
- Share
In Stock: 445
Can ship immediately
Pricing:
- 1$1.76
- 500$1.036
- 1,000$0.888
- 1,500$0.8584
- 2,500$0.8288
- 5,000$0.78736
- 12,500$0.7696
Quote It
Technical Details
- Series:WP7
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Discontinued at Digi-Key
- Connector Type:Plug, Outer Shroud Contacts
- Number of Positions:34
- Pitch:0.016" (0.40mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:0.7mm
- Height Above Board:0.020" (0.50mm)
