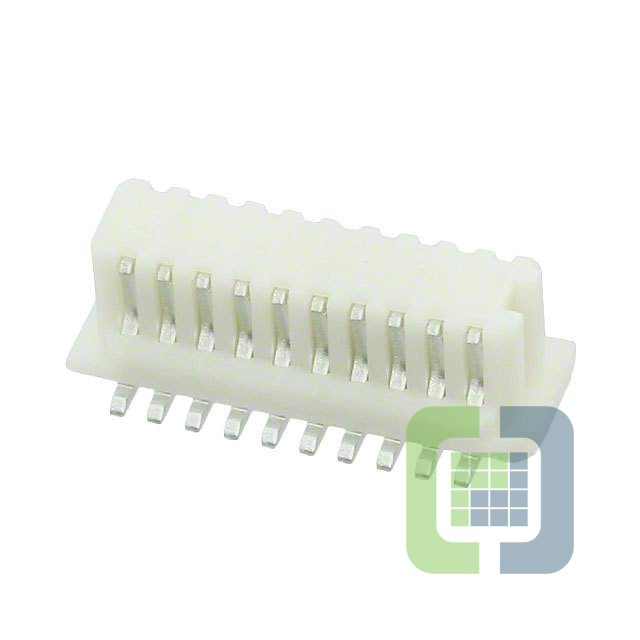

0524652071
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 20POS SMD TIN
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 0524652071 Datasheet
-
ECAD Model
- Share
In Stock: 505
Can ship immediately
Pricing:
- 1$1.84
- 1,000$1.01955
- 2,000$0.98557
- 3,000$0.95158
- 5,000$0.904
- 10,000$0.88361
Quote It
Technical Details
- Series:52465
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:20
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:-
- Contact Finish:Tin
- Contact Finish Thickness:120.0µin (3.05µm)
- Mated Stacking Heights:4.5mm, 5.65mm, 7mm
- Height Above Board:0.140" (3.55mm)
