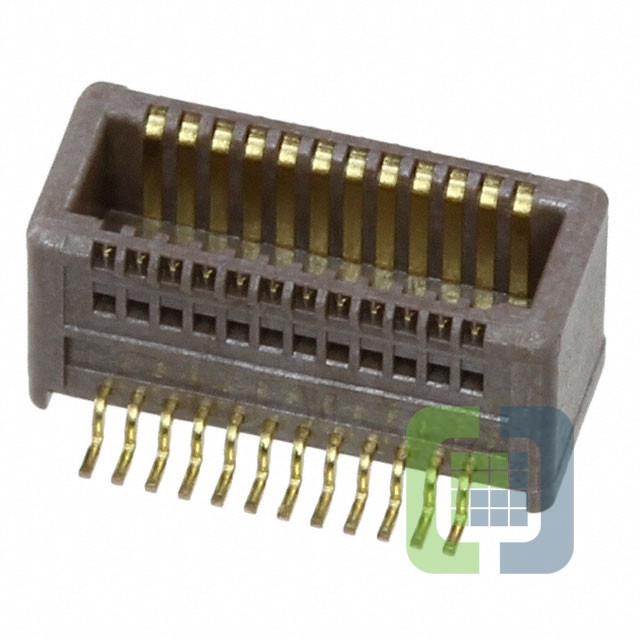

5010170248
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 24POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 5010170248 Datasheet
-
ECAD Model
- Share
In Stock: 881
Can ship immediately
Pricing:
- 1$1.94
- 1,500$1.04197
- 3,000$1.00604
- 7,500$0.95574
- 10,500$0.93418
Quote It
Technical Details
- Series:501017
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Plug, Outer Shroud Contacts
- Number of Positions:24
- Pitch:0.016" (0.40mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:-
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:4mm
- Height Above Board:0.120" (3.05mm)
